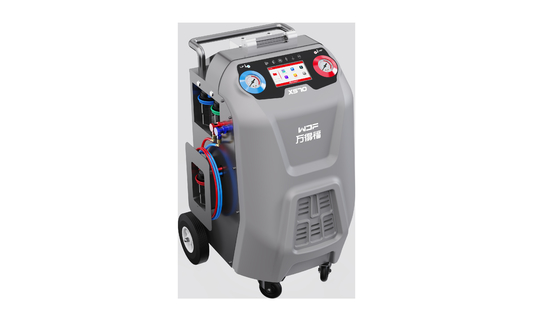

Gray X570 flushing function AC Refrigerant Recovery Machine with mini can filling
1 The first domestic refrigerant machine that supports quantitative filling of small tanks, and completes the precise filling of large/small tanks of refrigerant through dual electronic scales;
2 Compatible with diesel vehicles and new energy vehicles; 3 Fully automatic cleaning, recycling, pumping Vacuum and electronic scale filling;
3 Built-in 60,000 vehicle model filling database;
4 Equipped with a liquid window, the refrigerant replacement is clearly visible;
5 Using a 7-inch industrial-grade touch screen;
6 Operation and equipment maintenance are gradually displayed to avoid misoperation;
|Recovery speed||300g / Min|
|Charge speed||800g / Min|
|Scale accuracy||10 g|
Add Refrigerant into Refrigerant Cylinder
It must add refrigerant into the refrigerant cylinder as follows when the refrigerant quantity inside the refrigerant cylinder is not enough.
a) Regard the external refrigerant source cylinder as a part of the system and connect it with the high pressure connector ( or low pressure connector ) of the equipment.
b) Evacuate the water and air from the high pressure hose(or low pressure hose)to be connected with the equipment.
c) Open the valve on the external refrigerant source cylinder and add refrigerant into the refrigerant cylinder in accordance with the recovery procedure . After the desired quantity is recovered , close the valve on the external refrigerant source cylinder and continue the recovery process till it stops automatically.
d) Close the high pressure valve ( or the low pressure valve ) on the equipment and the procedure to add refrigerant into the refrigerant cylinder is completed.
FAQ for this device:
1 ) Are you factory ?
A: yes, we are factory in Guangzhou , China for 22 years
2) Which kind of refrigerant can use ?
A : You can use r134a refrigerant.
3 ) How to maintenance ?
A : Keep clean, do not pull water on it , water may damage the mainbord and other electronic conponent
4 ) Are there any componets need to changed after long time use ?
A : Yes, you should change the Dry filter after recovery 60 - 80 cars.
5 ) How much gram exactly weight should be set ?
A : It depends on your car model, nomarlly 600g - 1100g for car
