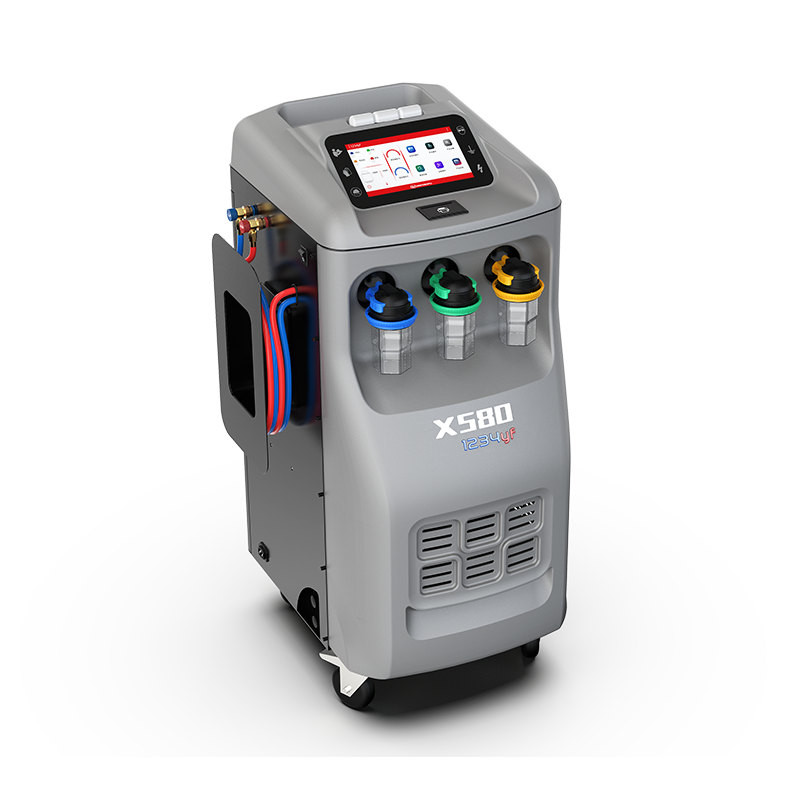

Automatic Car Ac Recovery Machine For R1234yf Gas Recycling

Automatic Car Ac Recovery Machine For R1234yf Gas Recycling
Features Gallery Product Description Request A Quote
Color: OEM
Refrigerant: R1234yf
Vehicle Compatible: Gasoline/Diesel Car, Electrocar, Hybrid Car
Power Supply: 220VAC, 50Hz
Power Consumption: 1200W
Oil Injection: Keypad
Display: 10 Inch Touch Screen
Recovery Speed: 300g/min
Scale Accuracy: 10g
Machine Size (D*W* H, Mm): (W/handle)740*550*1150
N.w./G.w.:: 108kg/125kg
High Light:

Automatic Car Ac Recovery Machine


R1234yf Car Ac Recovery Machine


OEM AC Refrigerant Recovery Machine

Basic Infomation
Place of Origin: China
Brand Name: Wonderfu
Certification: CE
Model Number: X580
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 26 working days
Payment Terms: T/T, L/C
Supply Ability: 200 Pcs per Month
Product Description

Automatic Car Ac Recovery Machine For R1234yf Gas Recycling For Car Repair Shop



Product instruction


a . Refrigerant Recovery : Recover the refrigerant R1234yf from the A/C system and do refreshing before restore it into the cylinder , so it will avoid refrigerant contamination .

b . Refrigerant filling : Set the amount of refrigerant filling, add the appropriate amount to the same vehicle type refrigerant .

c . Air conditioning leak : Detection air conditioning refrigerant piping for leaks , refrigerant piping to ensure a good seal .

d .Vacuum : Vacuumize the A/C system , exhaust the moisture and air inside .

e . Fill frozen oil : Set frozen oil , frozen oil added to the air-conditioning system .
Standard setting of high and low pressure parameters to improve working efficiency and reduce operation errors .




  • Full automatic. It can do recovery, vacuum, charge, recycling.
  • 5 digital scales, respectively for PAG oil, POE oil, UV dye, drained oil and cylinder gas.
  • 4 completely sealed oil bottles (1pc PAG, 1pc POE, 1pc UV dye, 1pc oil drain), no worry about contamination.
  • Database and printer. Database can be updated by a SD card. Printer can print out report with car plate and workshop’s name, and address.
  • 10 inches touch screen, clear and users friendly;
  • 3 indicated lamps on top to indicate the status (working, waiting, error)
  • Self-protection system. When the fan stops, machine stops
  • Leaking Hunting Function
  • Strong operation menu


Product specification:


Input power 1300W
Recovery speed 400g/min
Charge Speed 800g/min
Vacuum 375W
Filter ability 100kg
Scale accuracy 10g
Cylinder capacity 10kgs
Machine size (D*W* H, mm) (W/handle)740*550*1150
Packing size: (D*W* H, mm) (W/handle)810*620*1300
N.w./G.w.: 108kg/125kg
