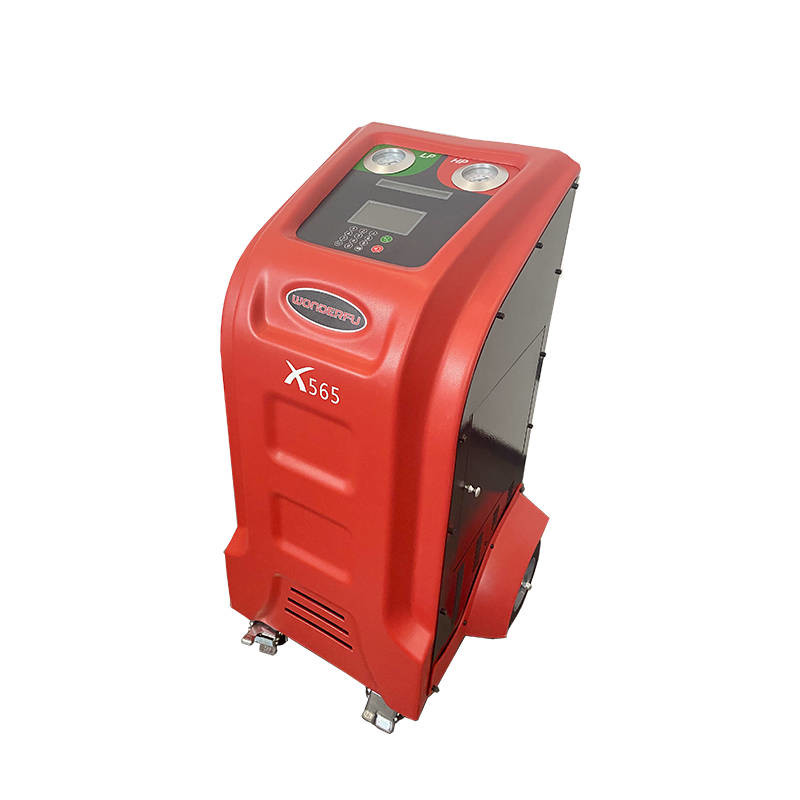

10KG AC Refrigerant Recovery Machine Recycling R134a And R1234yf Machine
Overview:
Contaminated only recovery for R-134a.
Motor vehicle air conditioner (MVAC) refrigerants can become contaminated from outside elements, other refrigerants from improper servicing, or in many other ways. If you have identified that the refrigerant in the vehicle you are servicing is contaminated, you must recover it before repairing or recharging.
The best way to recover contaminated or unfamiliar refrigerants is with a recover-only unit designed to remove these refrigerants. Wonderfu Refrigerant Recovery Machine is specifically designed to remove contaminated refrigerant from vehicles that are equipped with R-1234yf and R-134a MVACs.
All in one function: 2 in 1. It is a machine combines the A/C machine and flushing machine.
It can do recovery, vacuum, charge, recycling, and cleaning.
The cleaning function is to use R134a refrigerant to flush the A/C system.
Fully automatically operation;
With two filter drier, one big oil separator
Refrigerant pressure: (0~23KG, stops when over 23kg/cm2)
Refrigerant working pressure: Above 3KG
Cylinder capacity: 10KG
|
Input power |
1300W |
|
Recovery speed |
300g/min |
|
Charge Speed |
800g/min |
|
Vacuum speed |
5.4m3/h |
|
Filter ability |
100kg |
|
Scale accuracy |
10g |
|
Cylinder capacity |
10kgs |
|
Machine size (D*W* H, mm) |
680*570*1160 |
|
Packing size: (D*W* H, mm) |
720*630*1300 |
|
N.w./G.w.: |
87kg/101kg |
Photos:
How does a refrigerant recovery unit work?
The push-pull recovery method is used for transferring large volumes of liquid refrigerant. The recovery unit “pulls” vapor from the recovery cylinder and produces high-pressure discharge gas that “pushes” liquid out of the HVAC system and back into the recovery cylinder.
FAQ:
Q: How about your delivery time?
A: Generally, it will take 5 to 10 days after receiving payment. The specific delivery time depends on the items and the quantity of your order.
