1000W Bus AC Refrigerant Recovery Machine Car Air Conditioning Equipment

1
MOQ
1000W Bus AC Refrigerant Recovery Machine Car Air Conditioning Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Red And Customized
Refrigerant Type: R134a
Compatiable For: Cars / Mini Buses
Cabinet Mode: Metal +ABS
Input Power: 1000W
Recover, Vacuum, Charge: YES
Charge Ability: 1200g/min
Recovery Ability: 600g/min
Net Weight: 125kg
High Light:

Bus AC Refrigerant Recovery Machine

,

1000W AC Refrigerant Recovery Machine

,

1000W Car Air Conditioning Equipment

Basic Infomation
Place of Origin: China
Brand Name: Wonderfu
Certification: CE
Model Number: X550
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 26 working days
Payment Terms: T/T, L/C
Supply Ability: 200 Pcs per Month
Product Description

1000W Bus AC Refrigerant Recovery Machine Car Air Conditioning Equipment





Features:



Fully Automatic Function: Program to recover, vacuum, leak test and refrigerant charge without operating panel valves.
High quality visual pressure gauges and LCD display
Large capacity tank: 25kg
Auto discharge of Non-Condensable Gas
Support full vehicles data via USB port
Self Diagnosis
Visual & Audible Alarm when service is completed





Insturction:



X550 is a refrigerant recovery machine, designed for the recovery of medium and high-pressure refrigerants, including R134A.  The X550 automatically switches from liquid to vapor recovery, and provides continuous recovery without the need to change the hose or flip a switch.  Its oil-less compressor allows rapid transfer of large amounts of liquid, and can perform direct liquid recovery without damaging the compressor.





Main Parameter :





Input power

1000W

Recovery speed

600g/min

Charge Speed

1200g/min

Vacuum speed

14.4m3/h

Filter ability

150kg

Scale accuracy

10g

Cylinder capacity

25kgs

Machine size (D*W* H, mm)

790*640*1360

Packing size: (D*W* H, mm)

850*705*1460

N.w./G.w.:

110kg/130kg

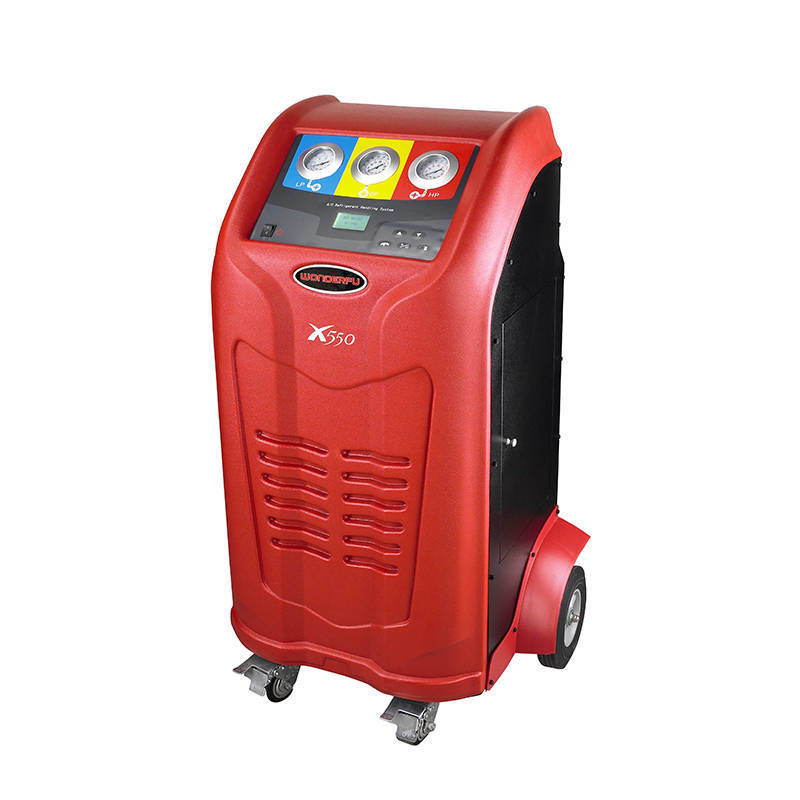

Photos:





1000W Bus AC Refrigerant Recovery Machine Car Air Conditioning Equipment 0





Add Refrigerant into Refrigerant Cylinder



It must add refrigerant into the refrigerant cylinder as follows when the refrigerant quantity inside the refrigerant cylinder is not enough.



a) Regard the external refrigerant source cylinder as a part of the system and connect it with the high pressure connector ( or low pressure connector ) of the equipment.



b) Evacuate the water and air from the high pressure hose(or low pressure hose)to be connected with the equipment.



c) Open the valve on the external refrigerant source cylinder and add refrigerant into the refrigerant cylinder in accordance with the recovery procedure . After the desired quantity is recovered , close the valve on the external refrigerant source cylinder and continue the recovery process till it stops automatically.



d)Close the high pressure valve ( or the low pressure valve ) on the equipment and the procedure to add refrigerant into the refrigerant cylinder is completed.





About us:



We have 22 years' experience in manufacturing automotive garage equipment. Our products include A/C refrigerant handling machine, fuel injector testing & cleaning machine, and nitrogen tire inflator etc. Our equipment is authorized to be used in the 4S service center in GM, TOYOTA, HONDA, VOLSWAGEN, FORD etc.
