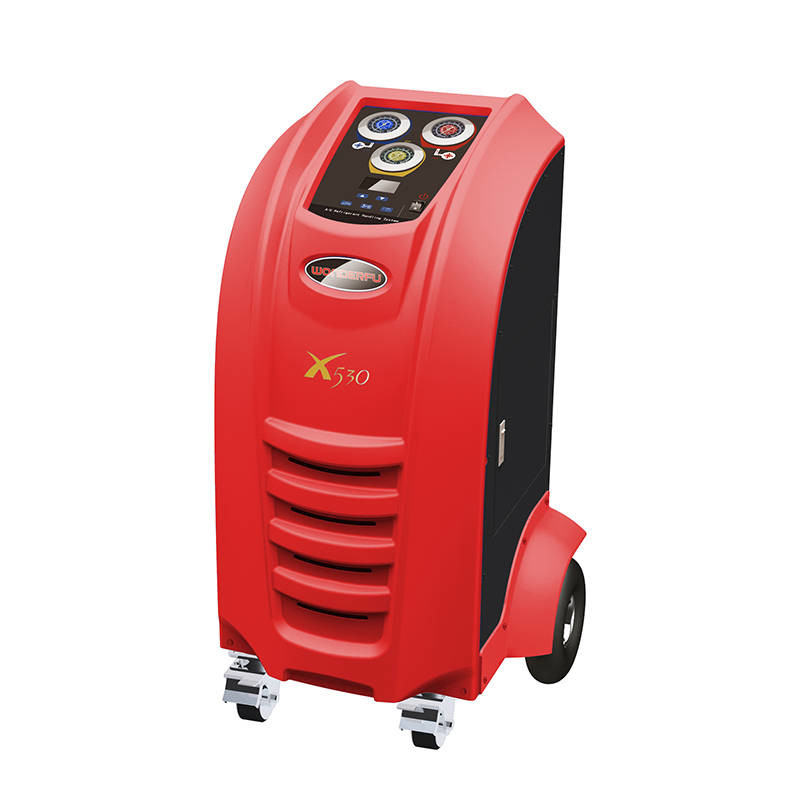

Red Car Ac Refrigerant Recovery Machine AC Gas Charging Machine
Red Car Ac Refrigerant Recovery Machine AC Gas Charging Machine
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Wonderfu
Certification: CE
Model Number: X530
High Light:

Red Car Ac Refrigerant Recovery Machine


300g/min Car Ac Refrigerant Recovery Machine


300g/min AC Gas Charging Machine

Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 26 working days
Payment Terms: T/T, L/C
Supply Ability: 200 Pcs per Month
Oil Drain: Manual/Automatic
Recovery Speed: 300g/min
Charge Speed: 800g/min
Voltage: 110-240v
Cylinder Capacity: 10kgs
Packing Size: 760*700*1350mm
Color: Red
Net Weight: 87KG
Gross Weight: 101KG
Product Description

Red Car Ac Refrigerant Recovery Machine AC Gas Charging Machine



Product Instruction


Refrigerant recovery , recharge , vacuum and leak hunting .

Automatic operation , after parameter setting and pipeline connection , the whole process is automatically completed , without the operator valve or other manual parts .

The machine contains a database of the latest car models , covering the amount of refrigerated oil and refrigerant added to most of the models in the domestic and foreign markets .

Standard setting of high and low pressure parameters to improve working efficiency and reduce operation errors .

High Precision weighing Sensor and High Voltage Protection function .






a . Auto Oil Discharge : Oil is automatically discharged during the recovery process . If oil is present , it will drain into a graduated container clearly displaying the amount of oil that was removed .

b . Recovery : High quality compressor and filter recovers the refrigerant from the vehicle's air conditioning system .

c . High precision electronic scale weighs the refrigerant filling and reclaiming .

d . Simple pipeline connection . Operation starts once the hose of the machine is connected to the interface of the air conditioner yet to be tested .

e . It adopts unique automatic protection design to prevent liquid attack and ultra-high pressure explosion.

f . Large-screen menu in both of the Chinese and English language , and intelligent operator interface.

g . Specific interface for small container of coolant supply.



Main Parameter:


Input power 750W
Recovery speed 300g/min
Charge Speed 800g/min
Vacuum speed 5.4m3/h
Filter ability 150kg
Scale accuracy 10g
Cylinder capacity 10kgs
Machine size (D*W*H, mm) 740*640*1240mm
Packing size:( D*W*H , mm) 760*700*1350mm
N.w./G.w.: 87kg/101kg



Red Car Ac Refrigerant Recovery Machine AC Gas Charging Machine 0
