Injector Cleaner And Tester Compatible

Injector Cleaner And Tester Compatible
Features Gallery Product Description Request A Quote
Color: Black
Size: 500(W)500(D)670mm(H)
Net Weight: 42kgs
Temperature Operation: -10℃~+40℃
Work Voltage: 220 Volts AC 50 Hz
Test Liquid Tank Volume: 3L
High Light:

gdi injector tester


injector cleaner and tester

Basic Infomation
Place of Origin: China
Brand Name: Wonderfu
Certification: CE
Model Number: WDF-GDI
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 26 working days
Payment Terms: T/T, L/C
Supply Ability: 200 Pcs per Month
Product Description

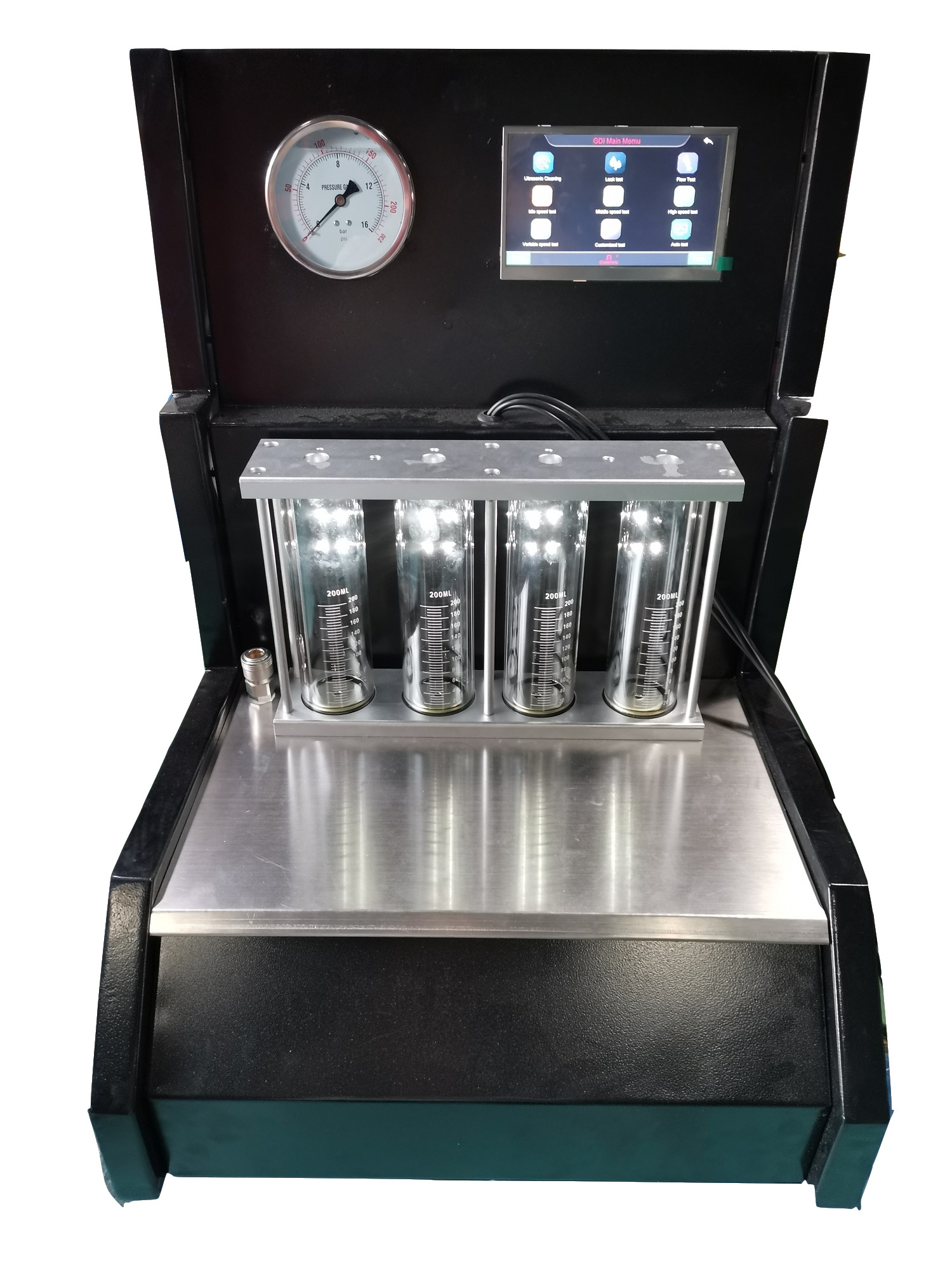

Injector Cleaner And Tester Compatible for GDI injectors 220 Volts



Equipment Description :


This equipment is composed of 2 different parts:

1. Work bench

2. Ultrasonic washing tank

3. Control Screen


Installation :


1. All equipment are delivered with 3 pin electrical cable, use the ground connection for equipment and operator protection.

2. Verify that test liquid level at 2.5L or at least between the range of two red lines. For a new machine, please fill 2.0~ 2.5L testing liquid. Never fill up the tank at its maximum capacity.

3. Fill up the ultrasonic cleaning tank with the liquid for injector cleaning. Liquid level should not reach 3 cm below the tank edge, in order to avoid liquid overflow on device. Take special care not to drop liquid on the equipment when filling up or emptying the tank.


Technical Characteristics :

· Appearance size:500(W)´500(D)´670mm(H) (not include ultrasonic bath)

· Net Weight: 42 kgs

· Temperature Scope of Operation: -10℃~+40℃

Work Voltage 220 Volts AC 50 Hz.

· Test Liquid Tank Volume: 3L

· Testing Tube Volume: 200 ml

· Ultrasonic Frequency: 25 kHz

· Ultrasonic Power: 75W

· Maximum Testing Number of Cylinder: 4

· Rotation Speed: 0~9900 r/min step 50 r/min

· Pulse Duration: 1~20 ms step 0.1 ms

· Injection Number of Times: 0~9900 step 50

· Injection Time: Idle speed: 0~600sec

Middle speed:0~60sec

High Speed: 0~60 sec

· Oil Pressure: 0~800kpa(8.0kg/cm2) (adjustable)

· 75 Watts /25KHz ultrasonic diagnostic and cleaning of injectors, with capacity of stainless steel tank for 3L.

· Includes cables/adapters for connection of multi-purpose & CIS injectors

· Micro processed equipment, totally programmable.


Injector Cleaner And Tester Compatible 0
