Gray Car Refrigerant Recovery Machine Mini Can Charge For R134a 8HP

1
MOQ
Gray Car Refrigerant Recovery Machine Mini Can Charge For R134a 8HP
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Car Refrigerant Recovery Machine
Refrigerant Type: R134a
Compress: 3/8HP
Charging Accuarcy: ±10g
Display: 7 Inch Touch Screen
Lifetime Of Pump Oil: 10H
Cylinder Capacity: 18000g
Packing Dimensions: 740*660*1200cm
Gross Weight: 95kg
Recovery Rate: ≥95%
Warranty: 1 Year
High Light:

Car Refrigerant Recovery Machine For R134a

,

8HP Car Refrigerant Recovery Machine

Basic Infomation
Place of Origin: China
Brand Name: Wonderfu
Certification: CE
Model Number: X570
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 26 working days
Payment Terms: T/T, , L/C
Supply Ability: 200 Pcs per Month
Product Description

1 Year Warranty Gray Car Refrigerant Recovery Machine With mini can charge For R134a





1 The first domestic refrigerant machine that supports quantitative filling of small tanks, and completes the precise filling of large/small tanks of refrigerant through dual electronic scales;



2 Compatible with diesel vehicles and new energy vehicles;



3 Fully automatic cleaning, recycling, pumping Vacuum and electronic scale filling;



4 Built-in 60,000 vehicle model filling database;



5 Equipped with a liquid window, the refrigerant replacement is clearly visible;



6 Using a 7-inch industrial-grade touch screen;



7 Operation and equipment maintenance are gradually displayed to avoid misoperation;







Parameter



Input power 1300W
Recovery speed 300g / Min
Charge speed 800g / Min
Filter ability 100kg
Scale accuracy 10 g
Cylinder capacity 18kgs
Machine size 580*610*1060mm
Packing size 630*650*1180mm
NW./GW 92Kg/102Kg





Photos:

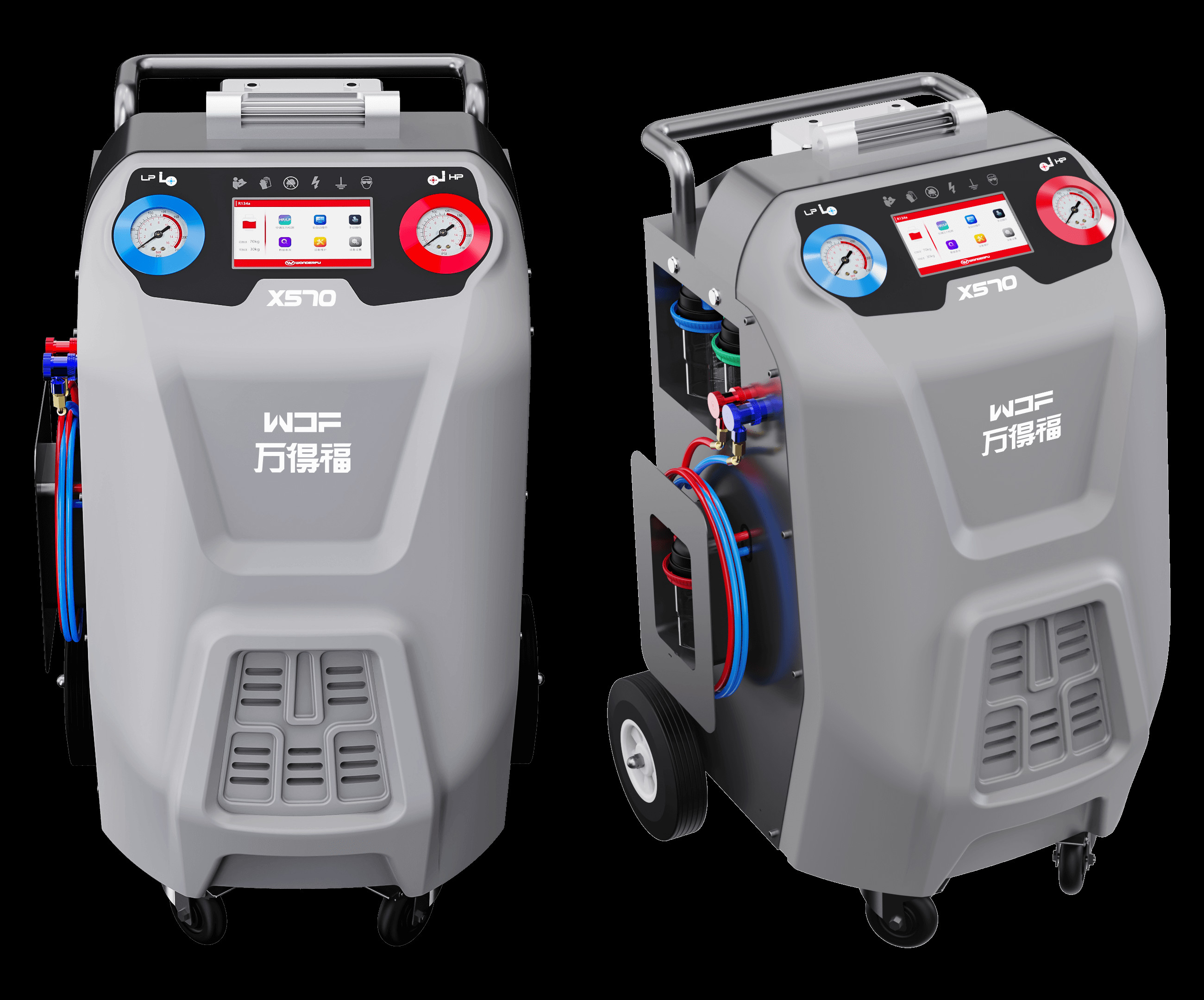

Gray Car Refrigerant Recovery Machine Mini Can Charge For R134a 8HP 0





Add Refrigerant into Refrigerant Cylinder



It must add refrigerant into the refrigerant cylinder as follows when the refrigerant quantity inside the refrigerant cylinder is not enough.



a) Regard the external refrigerant source cylinder as a part of the system and connect it with the high pressure connector ( or low pressure connector ) of the equipment.



b) Evacuate the water and air from the high pressure hose(or low pressure hose)to be connected with the equipment.



c) Open the valve on the external refrigerant source cylinder and add refrigerant into the refrigerant cylinder in accordance with the recovery procedure . After the desired quantity is recovered , close the valve on the external refrigerant source cylinder and continue the recovery process till it stops automatically.



d) Close the high pressure valve ( or the low pressure valve ) on the equipment and the procedure to add refrigerant into the refrigerant cylinder is completed.



FAQ for this device:



1 ) Are you factory ?

A: yes, we are factory in Guangzhou , China for 22 years

2) Which kind of refrigerant can use ?
A : You can use r134a refrigerant.

3 ) How to maintenance ?
A : Keep clean, do not pull water on it , water may damage the mainbord and other electronic conponent

4 ) Are there any componets need to changed after long time use ?
A : Yes, you should change the Dry filter after recovery 60 - 80 cars.

5 ) How much gram exactly weight should be set ?
A : It depends on your car model, nomarlly 600g - 1100g for car
