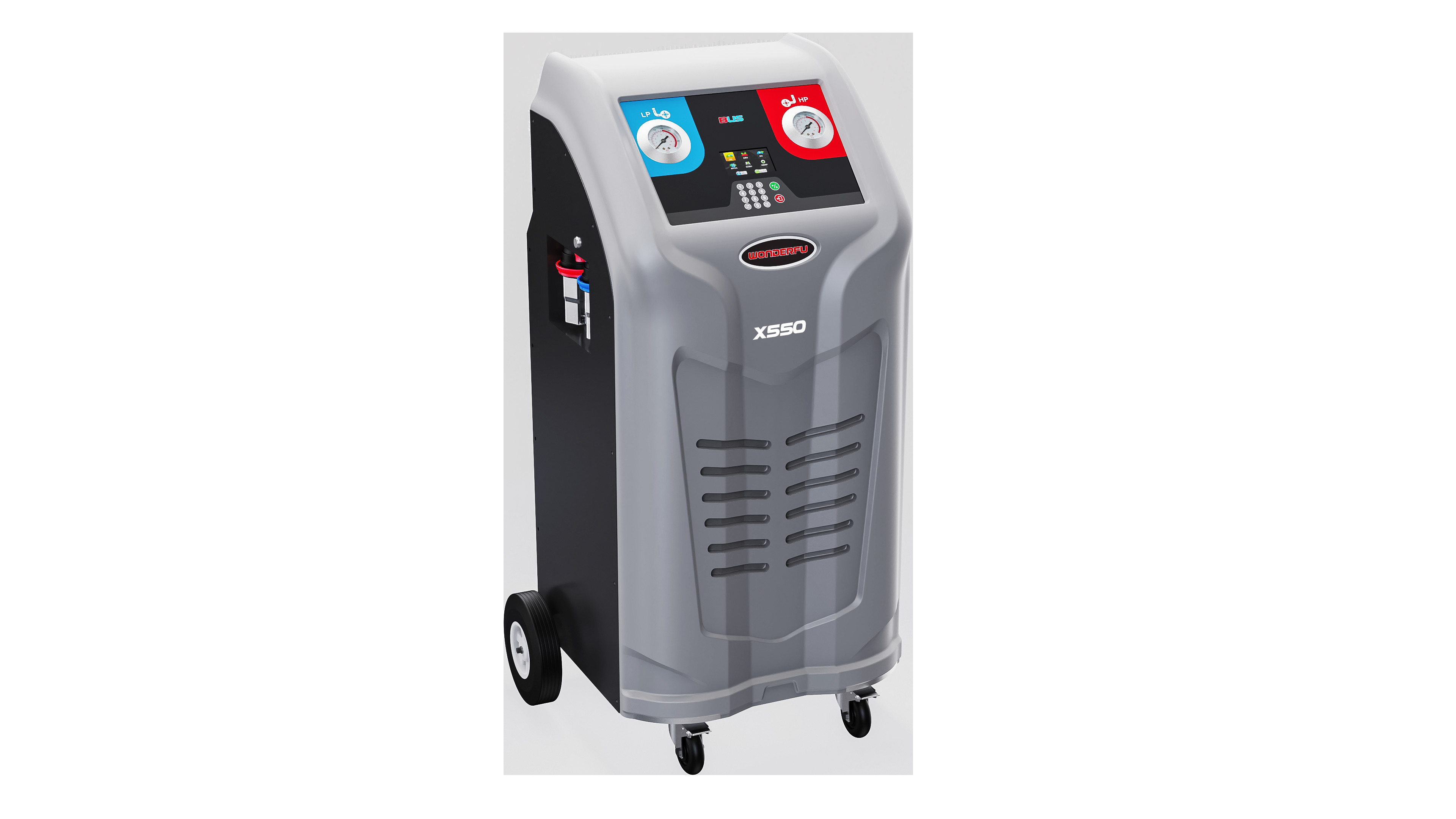

X550 Grey Large Refrigerant Recovery Machine for bus&truck with big tank
Features:
Fully Automatic Function: Program to recover, vacuum, leak test and refrigerant charge without operating panel valves.
High quality visual pressure gauges and LCD display
Large capacity tank: 25kg
Auto discharge of Non-Condensable Gas
Support full vehicles data via USB port
Self Diagnosis
Visual & Audible Alarm when service is completed
Insturction:
X550 is a refrigerant recovery machine, designed for the recovery of medium and high-pressure refrigerants, including R134A. The X550 automatically switches from liquid to vapor recovery, and provides continuous recovery without the need to change the hose or flip a switch. Its oil-less compressor allows rapid transfer of large amounts of liquid, and can perform direct liquid recovery without damaging the compressor.
Main Parameter :
|
Input power |
1000W |
|
Recovery speed |
600g/min |
|
Charge Speed |
1200g/min |
|
Vacuum speed |
14.4m3/h |
|
Filter ability |
150kg |
|
Scale accuracy |
10g |
|
Cylinder capacity |
25kgs |
|
Machine size (D*W* H, mm) |
790*640*1360 |
|
Packing size: (D*W* H, mm) |
850*705*1460 |
|
N.w./G.w.: |
110kg/130kg |
Photos:
Add Refrigerant into Refrigerant Cylinder
It must add refrigerant into the refrigerant cylinder as follows when the refrigerant quantity inside the refrigerant cylinder is not enough.
a) Regard the external refrigerant source cylinder as a part of the system and connect it with the high pressure connector ( or low pressure connector ) of the equipment.
b) Evacuate the water and air from the high pressure hose(or low pressure hose)to be connected with the equipment.
c) Open the valve on the external refrigerant source cylinder and add refrigerant into the refrigerant cylinder in accordance with the recovery procedure . After the desired quantity is recovered , close the valve on the external refrigerant source cylinder and continue the recovery process till it stops automatically.
d)Close the high pressure valve ( or the low pressure valve ) on the equipment and the procedure to add refrigerant into the refrigerant cylinder is completed.
