Flushing Portable Refrigerant Recovery Machine Full Automatic
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Wonderfu
Certification: CE
Model Number: X565
High Light:

Flushing Portable Refrigerant Recovery Machine

,

Portable Refrigerant Recovery Machine Full Automatic

Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 26 working days
Payment Terms: T/T, L/C
Supply Ability: 200 Pcs per Month
Specifications
Display: 7 Inch LCD
Name: X565 Ac Recovery Machine
Service Hose: 2m
Recovery Rate: 95 %
Cylinder Capacity: 18kg
N.w.: 87kg
Vacuum Speed: 60L/min
Charging Accuracy: ±10g
Product Description

Full Automatic Opreation Flushing Portable Refrigerant Recovery Machine for r123a



Features:
● All in one function: 2 in 1. It is a machine combines the A/C
machine and flushing machine.
● It can do recovery, vacuum, charge, recycling, and cleaning.
● The cleaning function is to use R134a refrigerant to flush the A/C
system.
● Fully automatically operation;
● With two filter drier, one big oil separator
● Refrigerant pressure: (0~23KG, stops when over 23kg/cm2)
● Refrigerant working pressure: Above 3KG
● Cylinder capacity: 10KG
● Sight glass , to observe flow rates and cleaning process .





Specification :



Compressor 3/8HP
Power Supply 220V/50Hz
Dry Filter ability 100kg
Cylinder capacity 18KGS
Scale Accuracy four
Charge Speed 10g
Vacuum Speed 120L/min
Lifetime of pump oil 600 min











































Photos:

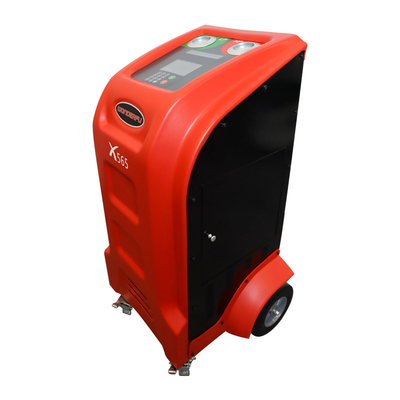

Flushing Portable Refrigerant Recovery Machine Full Automatic 0



Notice:
The machine is designed to be used and repaired by qualified personnel only.
The machine designed for use R134a refrigerant. Do not mix different type of refrigerant otherwise can easily lead to malfunction of the machine.
This equipment can only use one kind of refrigerant. If different types of refrigerant are needed, the whole equipment system needs to be emptied.
Keep away from moving parts and rotating elements such as cooling fans, alternators and heating components, etc. to avoid harm.
Wear protective clothing gloves and goggles.
As automotive air conditioning pipe flushing, the operator must be fully familiar with automotive air conditioning system and operation of the machine. Check whenever the engine is turned off that the ignition key is turned to the full OFF position!
Do not expose the machine to direct sunlight or rain. Use only in well-ventilated work areas.
Never exceed 30 ° tilt in transit process upside down is strictly prohibited.
Do not touch the machine high voltage power supply section, and do not maintain the machine as power on.



More details , please send me inquiry and leave me your contact information, then we can send you all details
