Full Automatic Operation Digital Tyre Inflator 40L 70L / Min For Bus

1
MOQ
Full Automatic Operation Digital Tyre Inflator 40L 70L / Min For Bus
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Tire Nitrogen Generator
Input Pressure: 8-10kgs
Cylinder Capacity: 40L
Nitrogen Purity: 90~99%
N2 Generation Speed: 55-70L/min
G.W.: 72kgs
Packing Size: 660×500×1640mm
N2 Outiet Pressure: 0-8kg
High Light:

Digital Tyre Inflator 40L

,

Bus Digital Tyre Inflator

Basic Infomation
Place of Origin: China
Brand Name: Wonderfu
Certification: CE
Model Number: X730
Payment & Shipping Terms
Packaging Details: Wooden pallet boxes
Delivery Time: 26 working days
Payment Terms: T/T, L/C
Supply Ability: 200 Pcs per Month
Product Description
Full Automatic Operation Red Digital Tyre Inflator for car and bus
Full automatic digital Car Tire Nitrogen Generator N2 Inflatable Digital System Car Tyre Inflator


Products Specification :


1. Nitrogen Tire Inflation X730 Come with inflation gun which can do inflation and vacuum. Maximum inflation pressure: 99psi

2.Two nitrogen storage tank inside (standard tank 20L, 40L tank is optional)

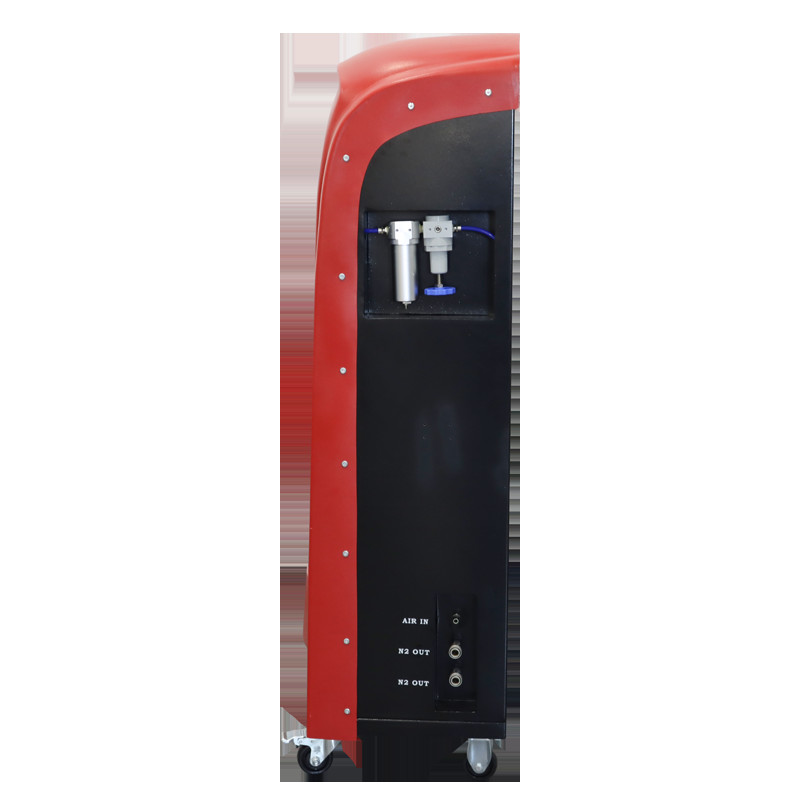

3.A good quality air filter at side helping to get rid of the moisture from the air.

4.It is full automatic and it can inflate two tires at the same while. Maximum inflation pressure is 99PSI.
5.A good quality air filter at side helping to get rid of the moisture from the air.
6.It beeps once the inflation being done, and also the LCD will display “End”.
7.40L storage tank.
8.The way we pack is safe and sound.



Features



1.N2 inflation for car, mini-bus

2.Fully automatic operation

3.Inflate 2 tires at the same time

4.Customized setting the tires pressure, beep when inflation completed

5.Prompting message for low inlet pressure or leakage

6.Tertiary air filter to keep out the impurities



Technical index:



Nitrogen purity 95%-99%
Air compressor required 8-10kg
N2 outlet pressure 0-8KG/cm2
Nitrogen generating speed 35-55L/min
Rating input voltage 220V 50/60HZ
Internal tank 20L
Size 620×460×1500mm
Packing size 660×500×1640mm
Weight 60kg





Manual inflation operation steps:



(It will NOT vacuum the tires but just inflate N2 into the tires)



1) After preparation is done, turn on the machine.

2) Set the unit (kg, bar, psi, or mpa) by pressing the key “READ”

3) Set the tire pressure by “+” or “—”

4) Press the key “MANUAL” to start N2 inflation. The machine will directly inflate N2 into the tires without vacuum the tire.

5) The window will indicate “END” when inflation completed, and beep sound will be heard.

6) Remove the connector, and the window and exit automatically and come back to original 2.10kg



Full Automatic Operation Digital Tyre Inflator 40L 70L / Min For Bus 0
