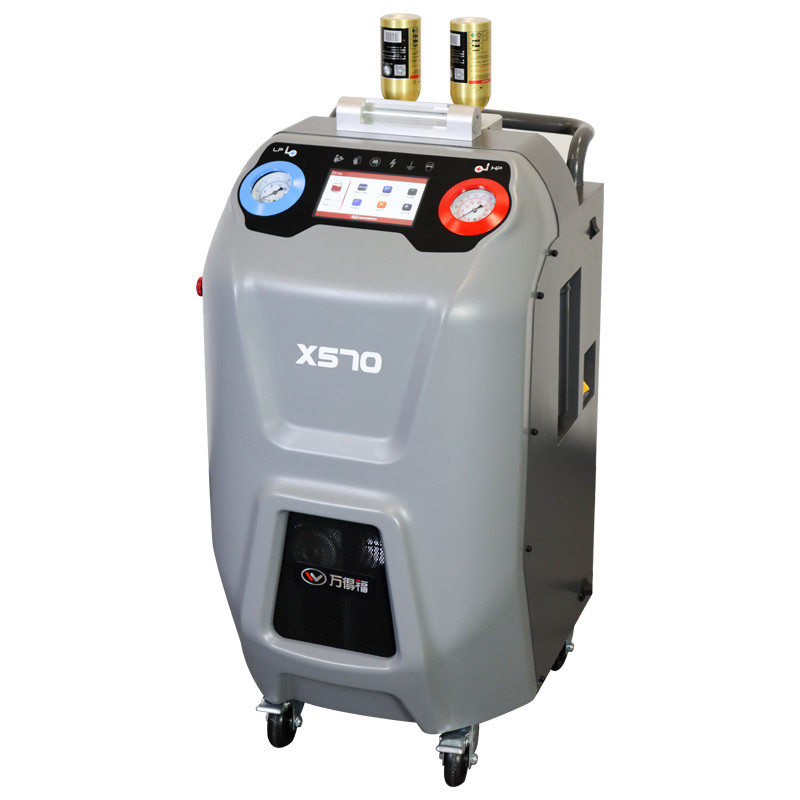

X570 Gray Automatic Car Refrigerant Recovery Machine With Mini Tank charging
Short description:
1) A/C Service Station is the latest production for refrigerant recovering, recharging and purifying, developed based on durable components. The product is meet the SAE standard. The unit mainly used in automatic servic stations, automobile production line ect.
2) It is easy to connect the quick connectors of high /low pressure refrigerant to the automobile airconditioner system. One can perform pipeline cleaning and all repairs without pipe removing and replacing.
3) It is efficient , time saving and labor saving.
Quick details :
● 7 inches’ touch screen
● Recovery, vacuum, charge
● Leakage hunting;
● Fully automatically operation;
● Larger LCD display;
● Service database, and printer
● Drain & charge compressor oil automatically;
● Mini can charge
● Sight glass
Main Parameter :
| Input power | 800W |
| Recovery speed | 400g/min |
| Charge Speed | 1000g/min |
| Vacuum speed | 120L/min |
| Filter ability | 100kg |
| Scale accuracy | 10g |
| Cylinder capacity | 18kgs |
| Machine size (D*W* H, mm) | 630*680*1060 |
| Packing size: (D*W* H, mm) | 740*660*1200 |
| N.w./G.w.: | 85kg/95kg |
Photos:
Add Refrigerant into Refrigerant Cylinder
It must add refrigerant into the refrigerant cylinder as follows when the refrigerant quantity inside the refrigerant cylinder is not enough.
a) Regard the external refrigerant source cylinder as a part of the system and connect it with the high pressure connector ( or low pressure connector ) of the equipment.
b) Evacuate the water and air from the high pressure hose(or low pressure hose)to be connected with the equipment.
c) Open the valve on the external refrigerant source cylinder and add refrigerant into the refrigerant cylinder in accordance with the recovery procedure . After the desired quantity is recovered , close the valve on the external refrigerant source cylinder and continue the recovery process till it stops automatically.
d) Close the high pressure valve ( or the low pressure valve ) on the equipment and the procedure to add refrigerant into the refrigerant cylinder is completed.
FAQ for this device:
1 ) Are you factory ?
A: yes, we are factory in Guangzhou , China for 22 years
2) Which kind of refrigerant can use ?
A : You can use r134a refrigerant.
3 ) How to maintenance ?
A : Keep clean, do not pull water on it , water may damage the mainbord and other electronic conponent
4 ) Are there any componets need to changed after long time use ?
A : Yes, you should change the Dry filter after recovery 60 - 80 cars.
5 ) How much gram exactly weight should be set ?
A : It depends on your car model, nomarlly 600g - 1100g for car
6) Do you have AC work station machine for heavy duty ?
A : Yes, we have. X550 is for truck, bus, lorry . Pls contact me, we can send more details about this machine to you.
7 ) Do you have machine for Cleaning and Flushing AC system ?
A : Yes, we have 2 models of Auto AC refrigerant system Flushing and Cleaning machine . Use original refrigerant to clean system.
